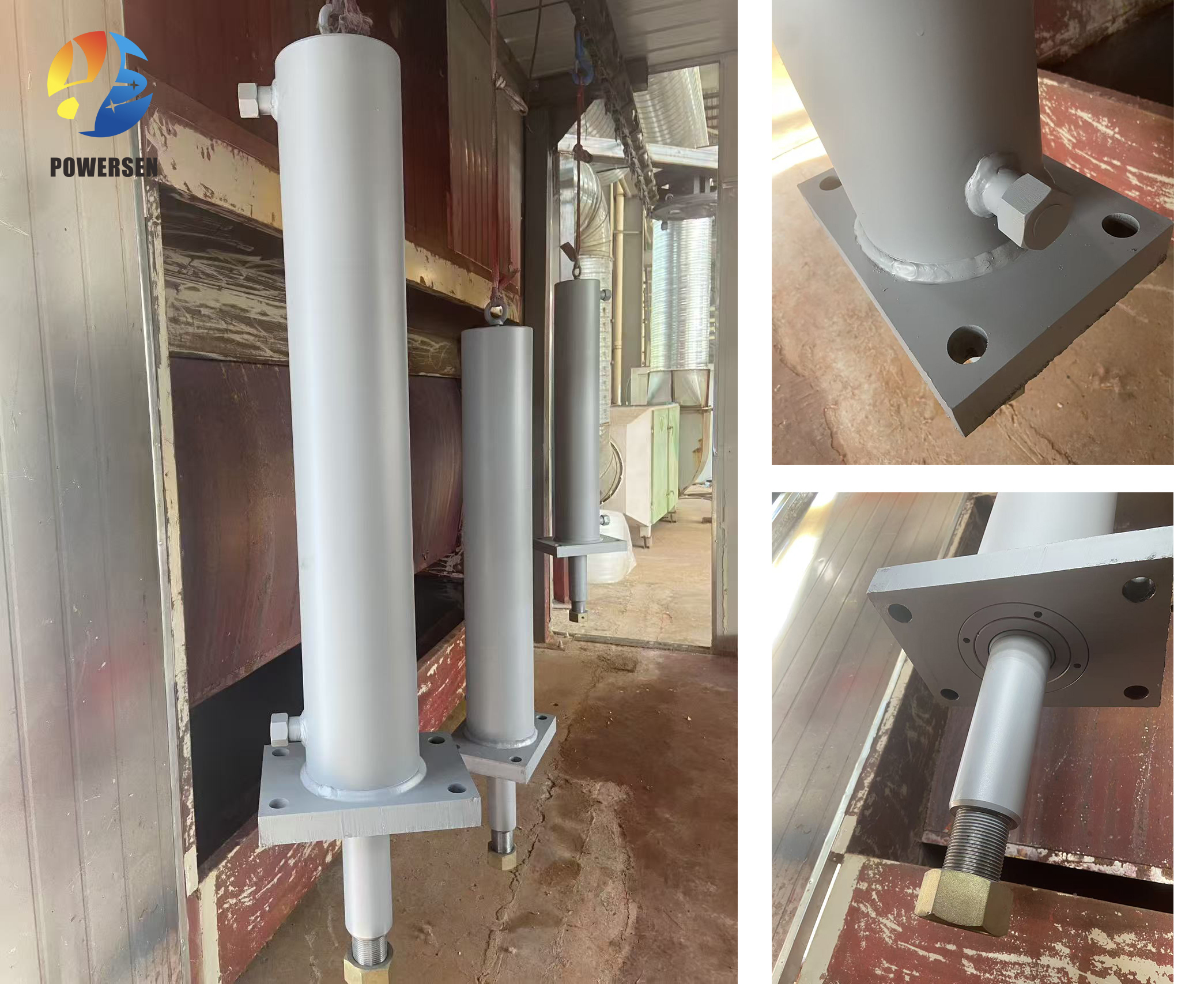

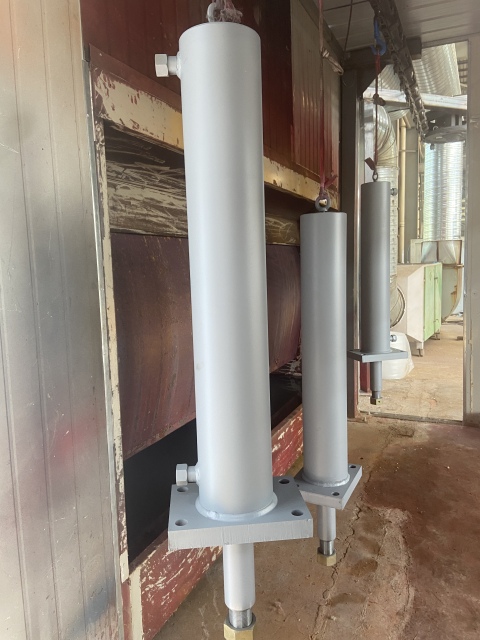

The GRFX2605062 hydraulic cylinder is a custom-designed heavy-duty hydraulic actuator engineered for industrial equipment and mechanical systems requiring stable linear motion, high structural strength, and reliable hydraulic sealing performance.
This cylinder adopts a robust welded structure with precision-machined mounting interfaces, making it suitable for demanding applications such as construction machinery, hydraulic stations, automation equipment, mining machinery, and heavy industrial systems.
| Parameter | Specification |
|---|---|
| Drawing No. | GRFX2605062 |
| Drawing Date | 2026-05-06 |
| Cylinder Type | Welded Hydraulic Cylinder |
| Thread Connection | M52×3 |
| Oil Port | M36×2 |
| Lifting Lug Thread | M16×2 |
| Overall Body Length | 1004 mm |
| Main Working Length | 730 mm |
| Front Connection Length | 200 mm |
| Threaded Shaft Length | 80 mm |
| Rear End Structure Length | 91 + 38 + 30 mm |
| Cylinder Outer Diameter | 140 mm |
| Inner Bore Diameter | 70 mm |
| Front Flange Width | 300 mm |
| Front Flange Height | 210 mm |
| Bolt Hole Distance | 245 mm × 148 mm |
| Mounting Hole Diameter | Ø26 |
| Center Bore Diameter | Ø150 |
The cylinder body is manufactured using a reinforced welded design that provides excellent rigidity and durability under high-pressure operating conditions.

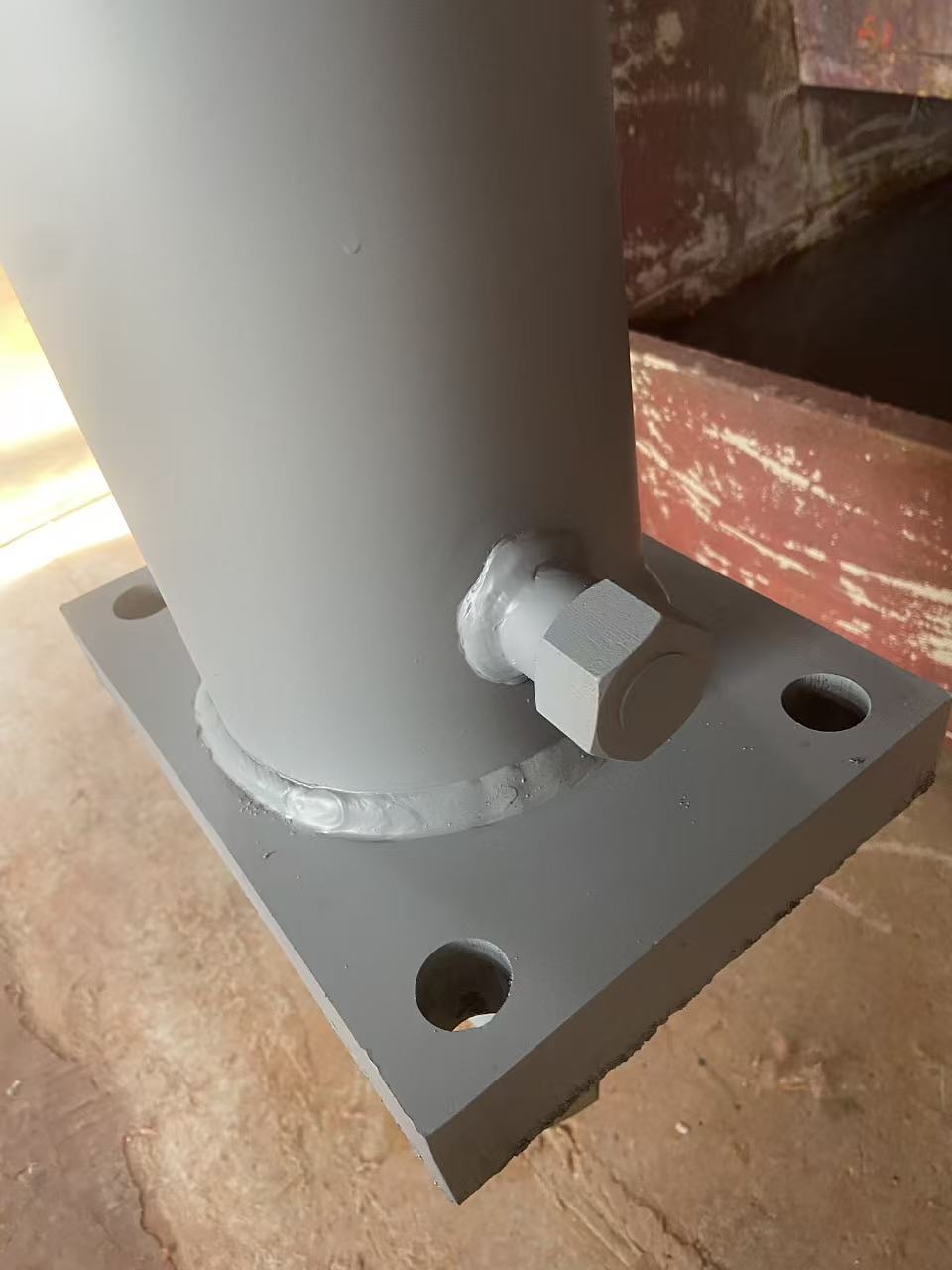

The M52×3 threaded connection and M36×2 oil port ensure secure hydraulic integration, leak resistance, and easy installation.
The optimized dimensional structure allows installation in limited spaces while maintaining long stroke capability and stable force output.

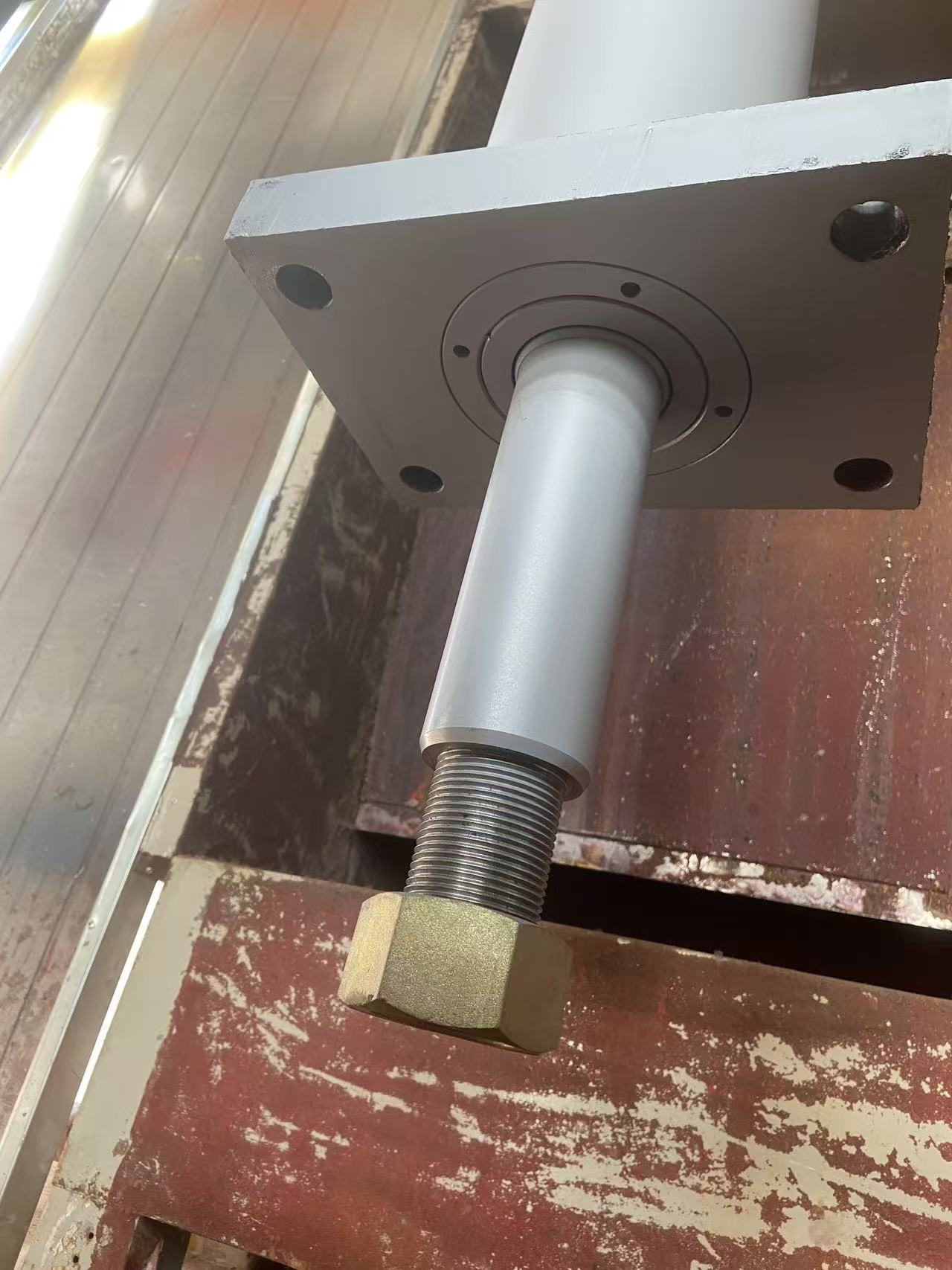

The front flange mounting plate includes precision bolt holes for stable fixation and simplified alignment during assembly.
The lifting lug thread (M16×2) enables convenient handling, transportation, and maintenance operations.
This hydraulic cylinder is suitable for:
The GRFX2605062 hydraulic cylinder combines durability, precision engineering, and efficient hydraulic performance in a compact industrial design. With reinforced welded construction, standardized threaded interfaces, and optimized mounting dimensions, it provides dependable operation for a wide range of heavy-duty hydraulic applications.
