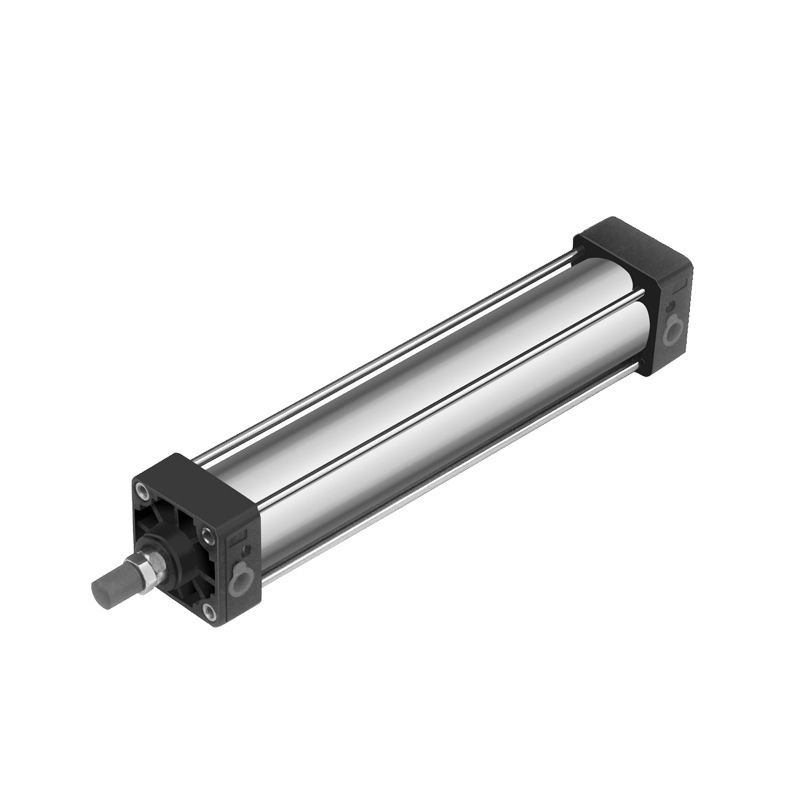

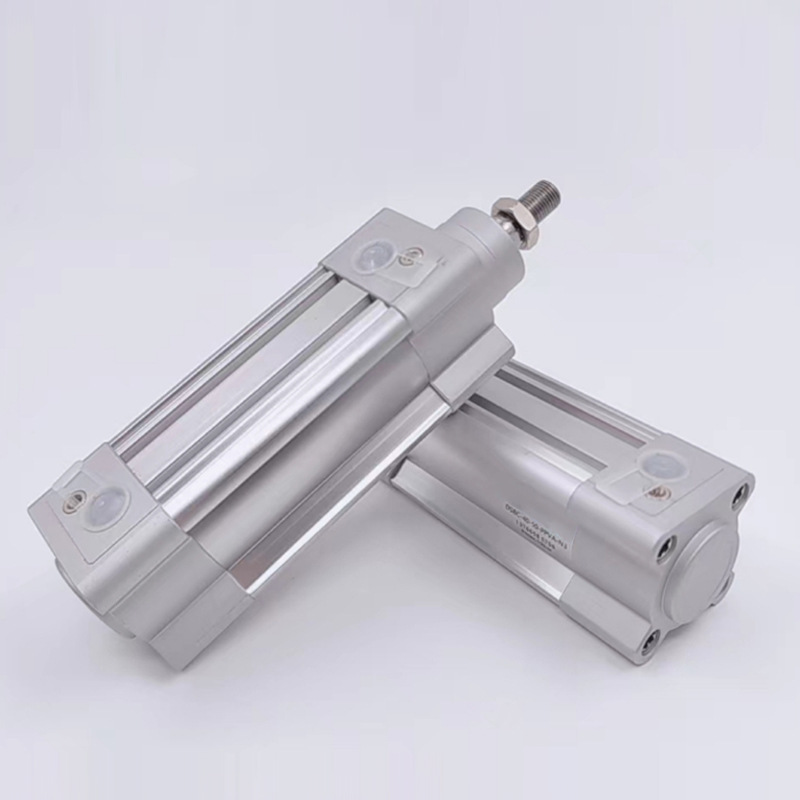

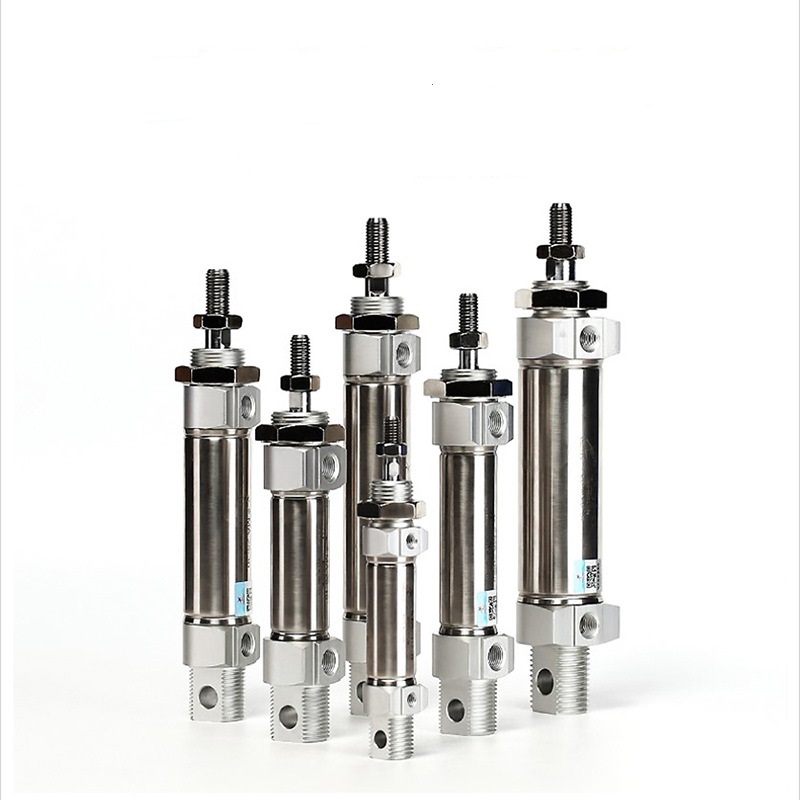

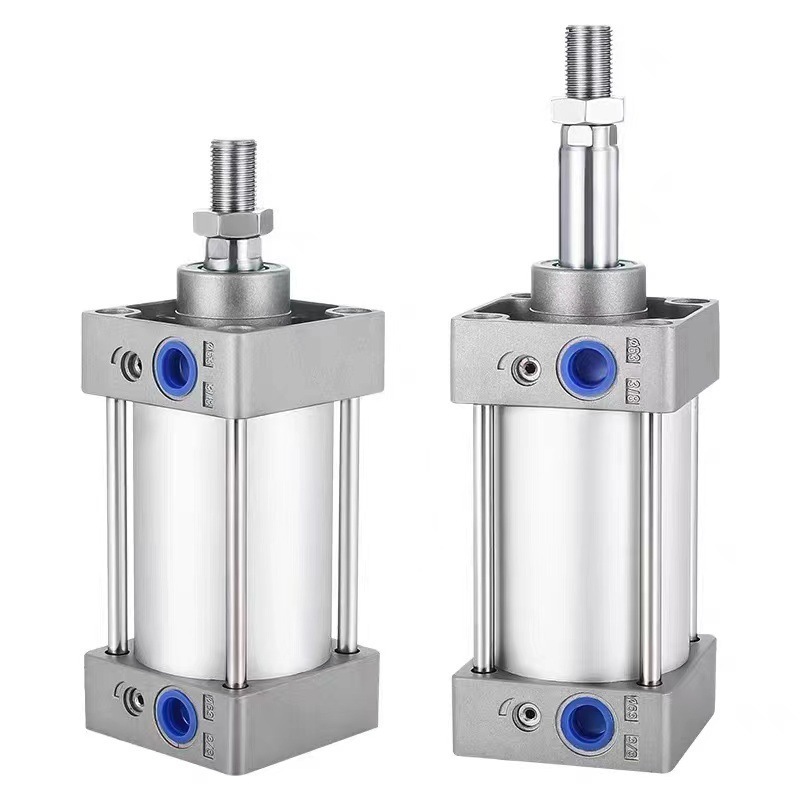

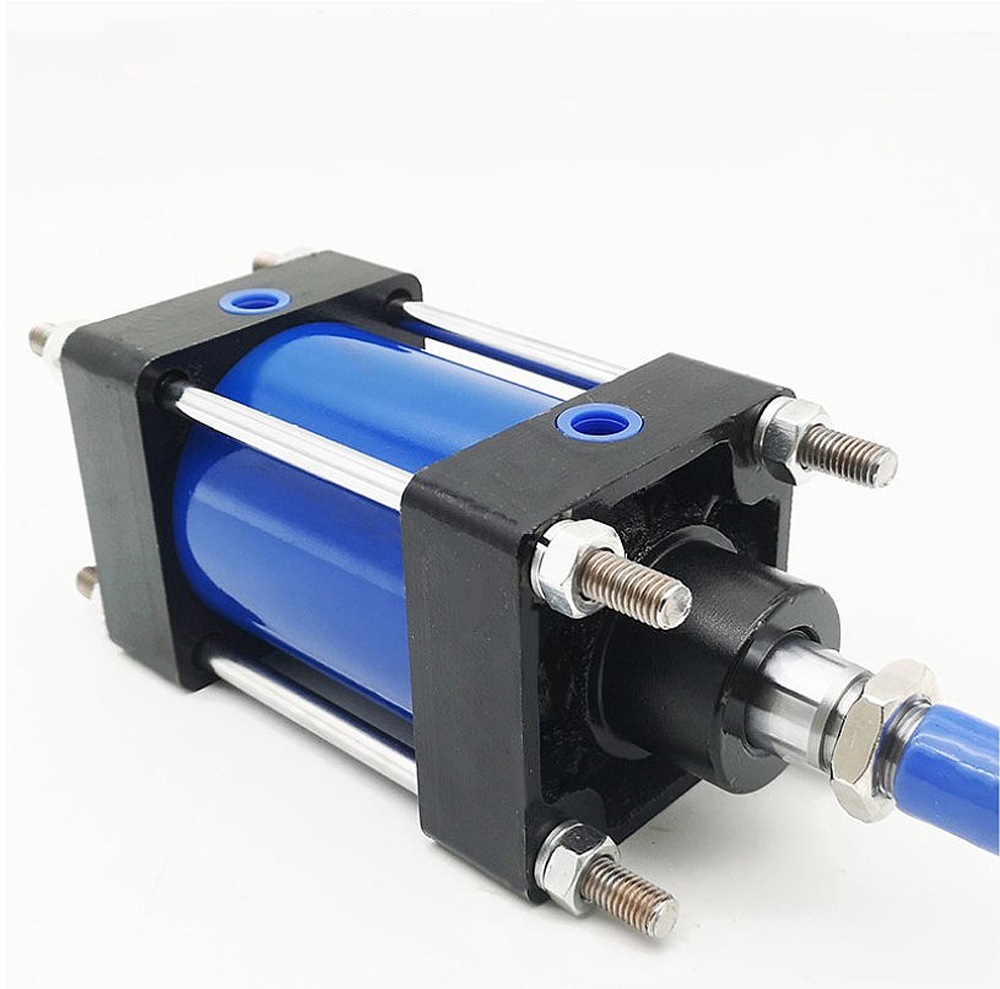

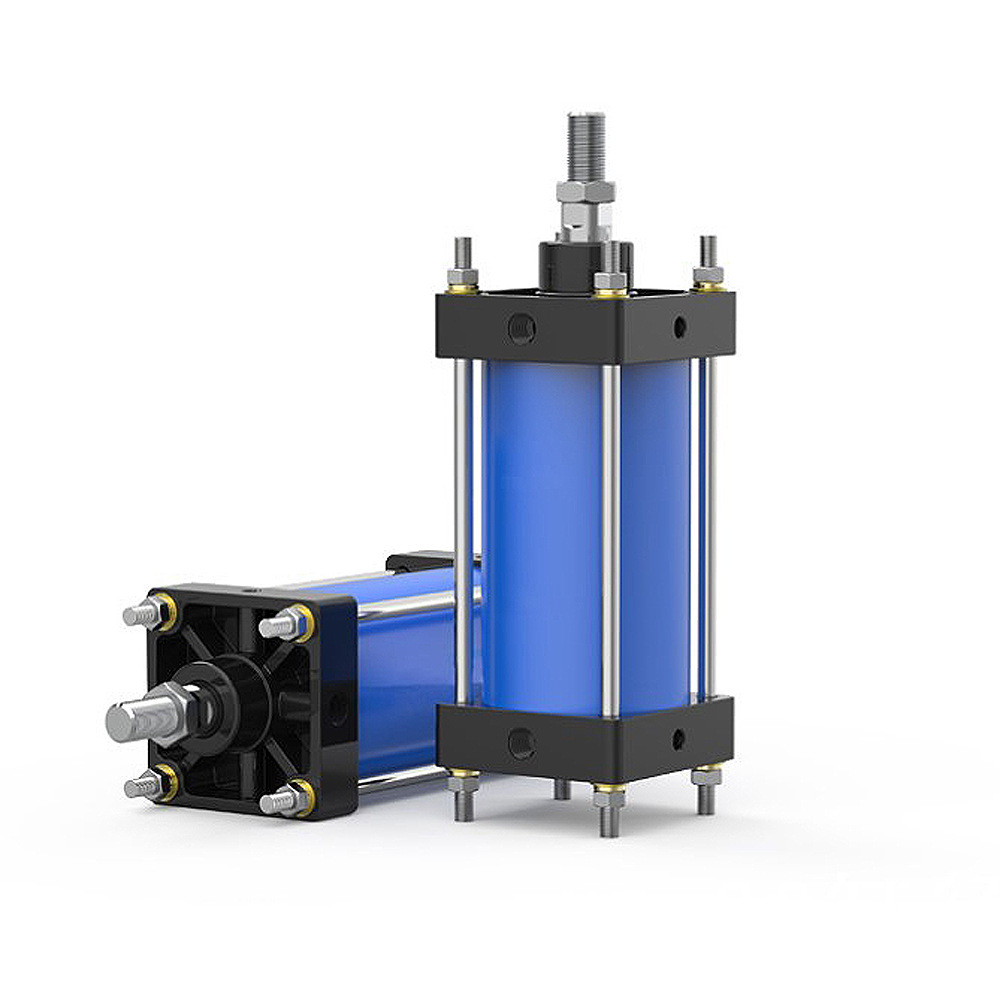

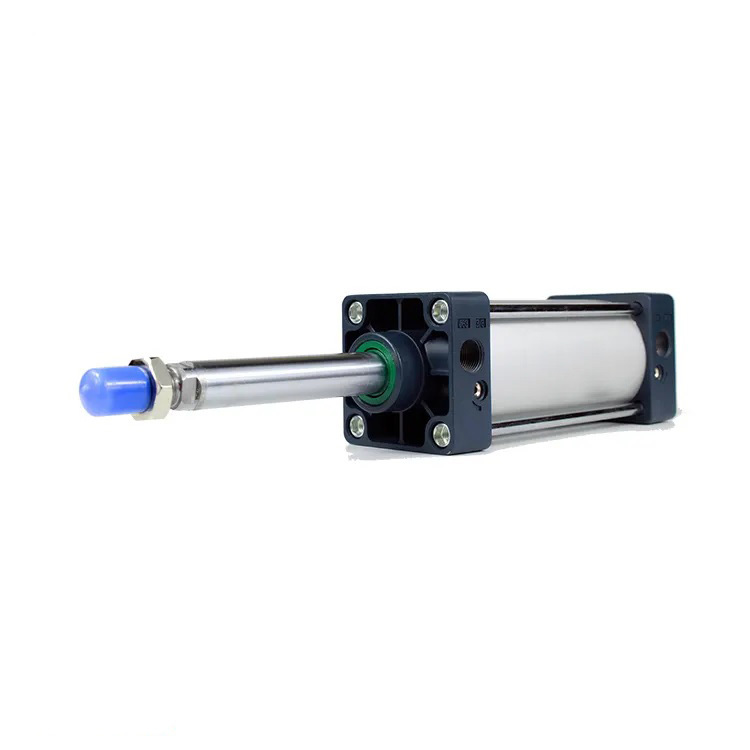

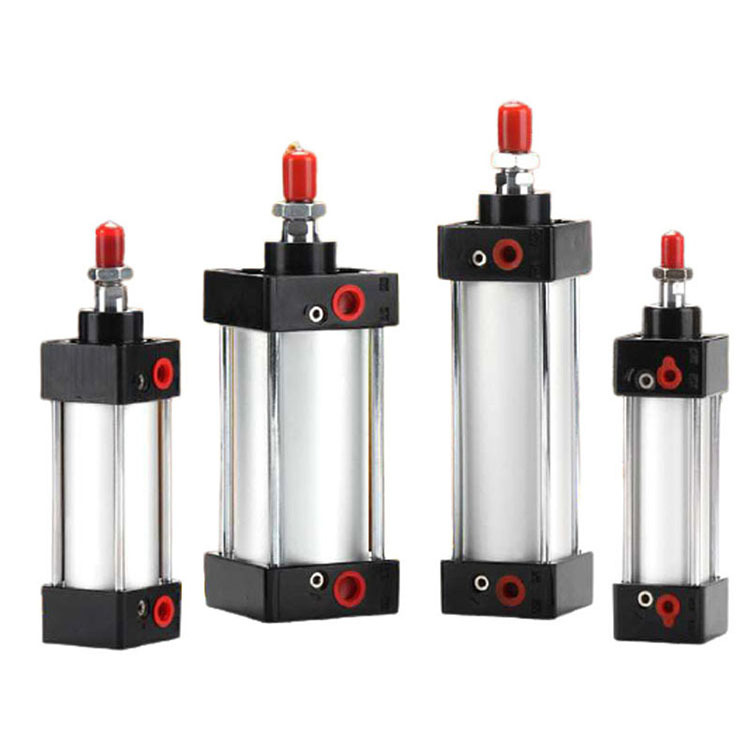

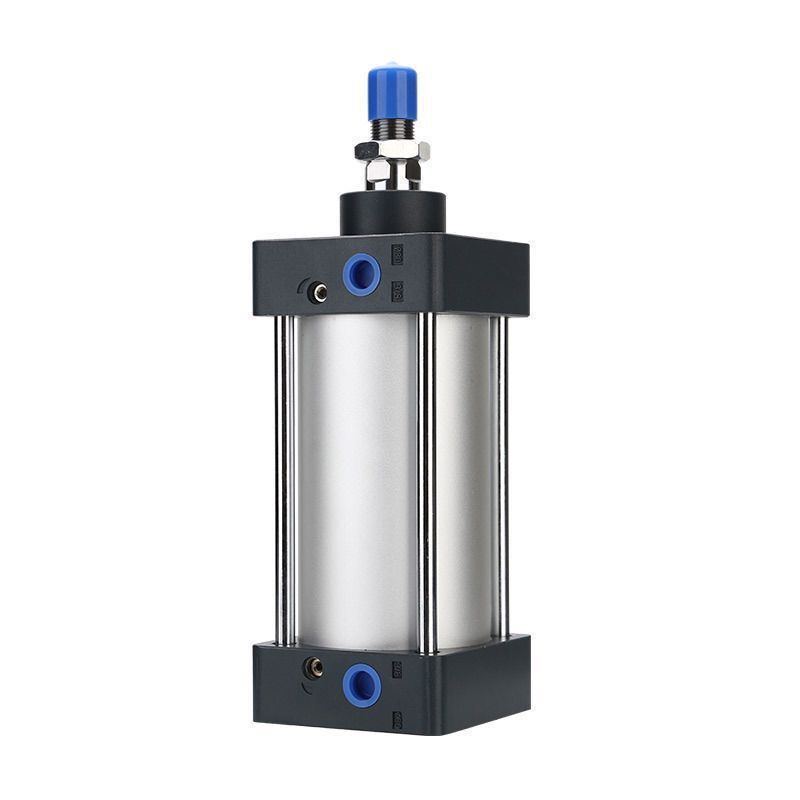

Manufacturer Customzation Good Quality Pneumatic Cylinder

Types of Pneumatic Cylinders we can make:

1. Single-Acting Cylinder (SAC):

   • Air pressure drives the piston in one direction.
   • A spring or external force returns the piston to its initial position.
   • Commonly used for simple operations requiring motion in one direction.

2. Double-Acting Cylinder (DAC):

   • Air pressure is applied alternately to both sides of the piston, enabling motion in both directions.
   • Ideal for repetitive, continuous applications.

3. Rodless Cylinder:

   • Eliminates the need for a piston rod; the piston is inside the cylinder.
   • Motion is transmitted via a magnetic or mechanical coupling.
   • Suitable for space-saving designs.

4. Telescopic Cylinder:

   • Composed of multiple stages that extend sequentially.
   • Offers a long stroke with a compact initial length.

5. Rotary Cylinder:

   • Converts compressed air into rotary motion.
   • Often used in clamping or turning mechanisms.

6. Compact Cylinder:

   • Designed for applications where space is limited.
   • Provides similar force with a smaller size.

Key Components

• Cylinder Barrel: Houses the piston and provides a path for motion.
• Piston: A movable element that divides the cylinder into two chambers.
• Piston Rod: Transfers the piston’s motion to the external load.
• End Caps: Seal the ends of the cylinder barrel.
• Seals: Prevent air leakage and ensure smooth motion.
• Ports: Allow air to enter and exit the cylinder.

Advantages of Pneumatic Cylinders

• Fast Operation: Quick response times for dynamic systems.
• Durability: Fewer moving parts lead to lower maintenance.
• Safety: Operates at low pressure, minimizing risks.
• Cost-Effectiveness: Relatively inexpensive compared to other actuation methods.
• Environmentally Friendly: Uses clean air as a power source.

Applications

• Manufacturing and Automation: Assembly lines, robotic arms, and pick-and-place systems.
• Material Handling: Lifting, pushing, or pulling objects.
• Packaging: Filling, sealing, or sorting tasks.
• Automotive Industry: Brake systems, engine assembly, and testing.
• Agriculture: Operates gates, flaps, or doors.
