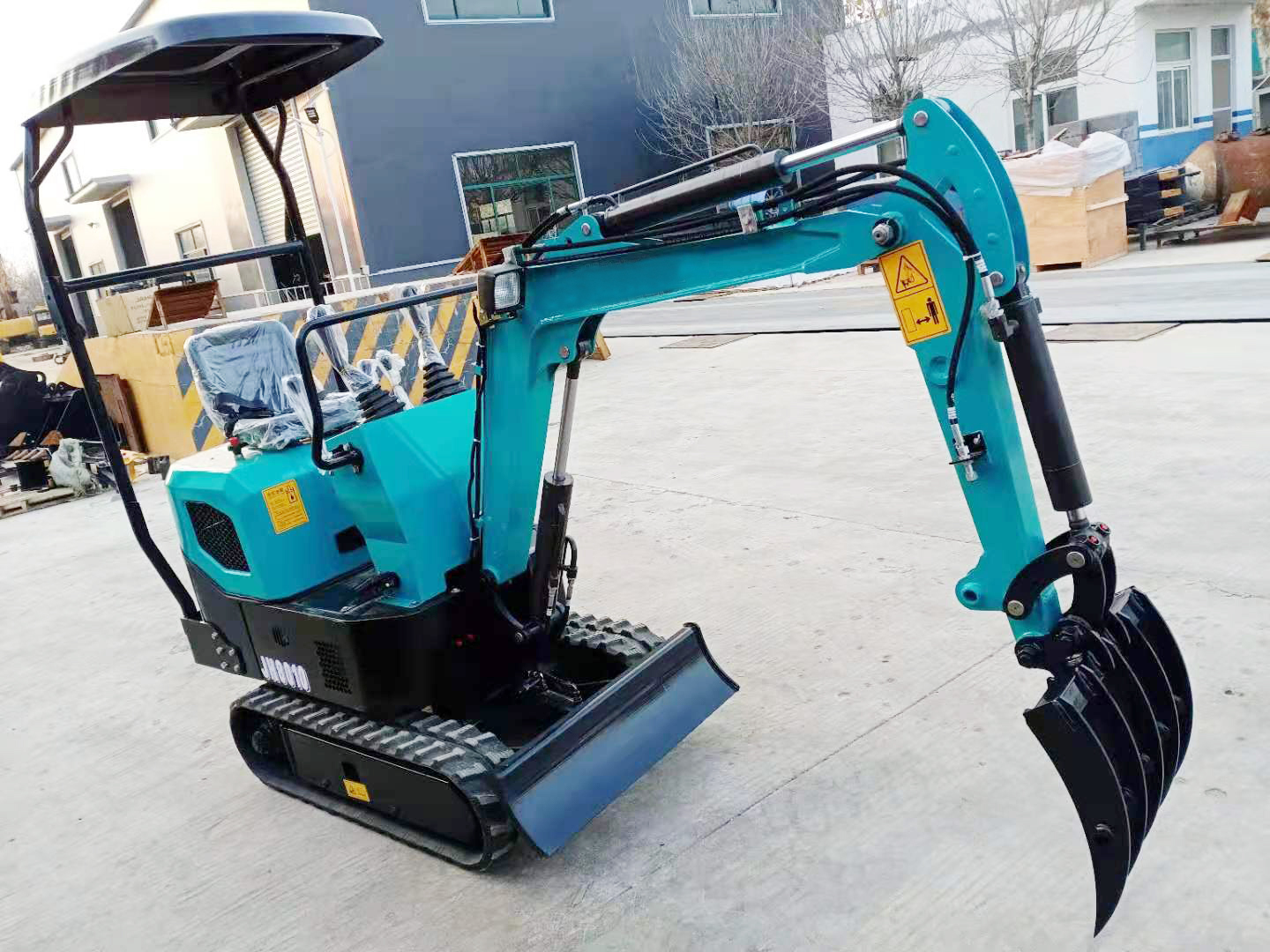

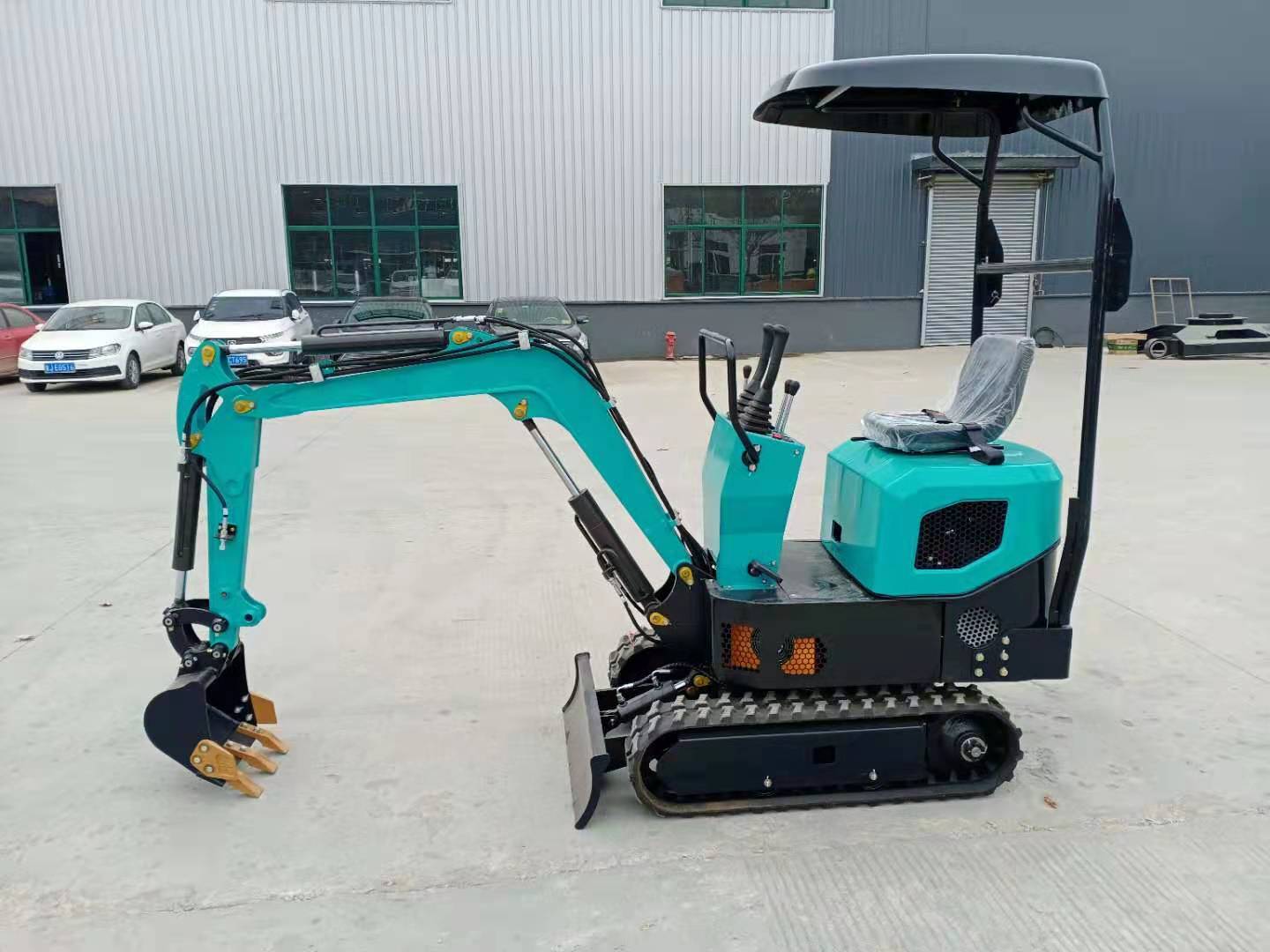

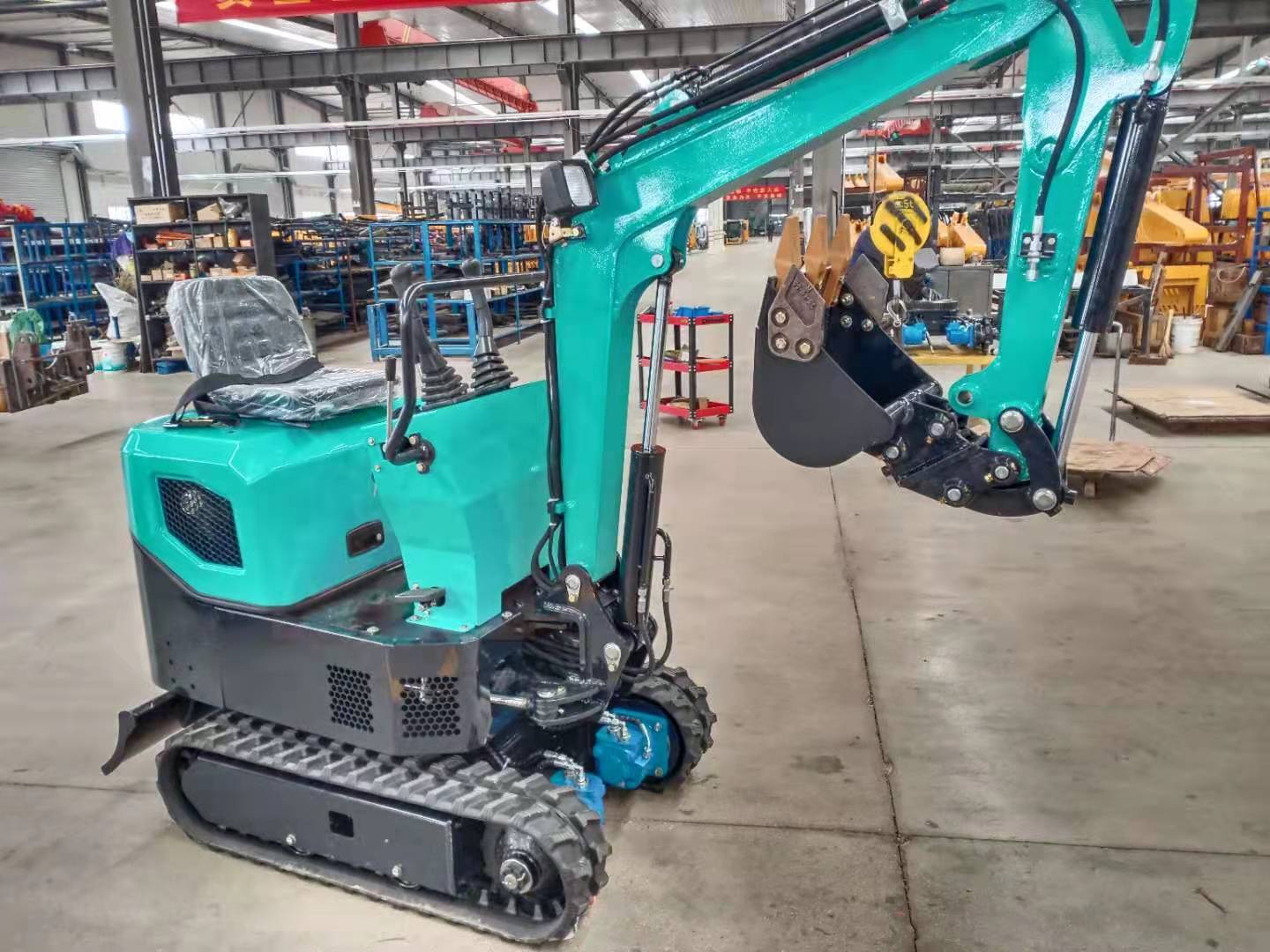

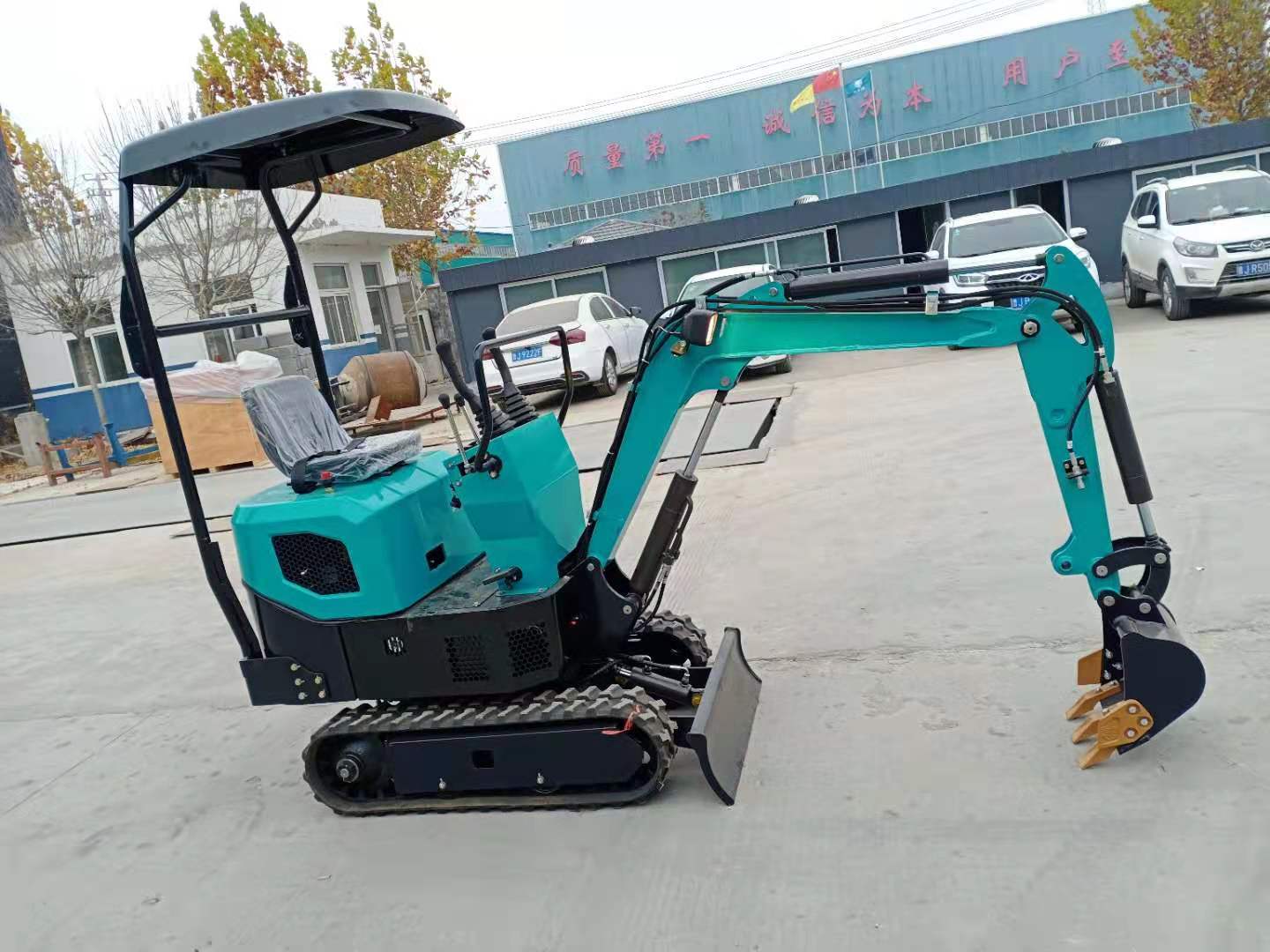

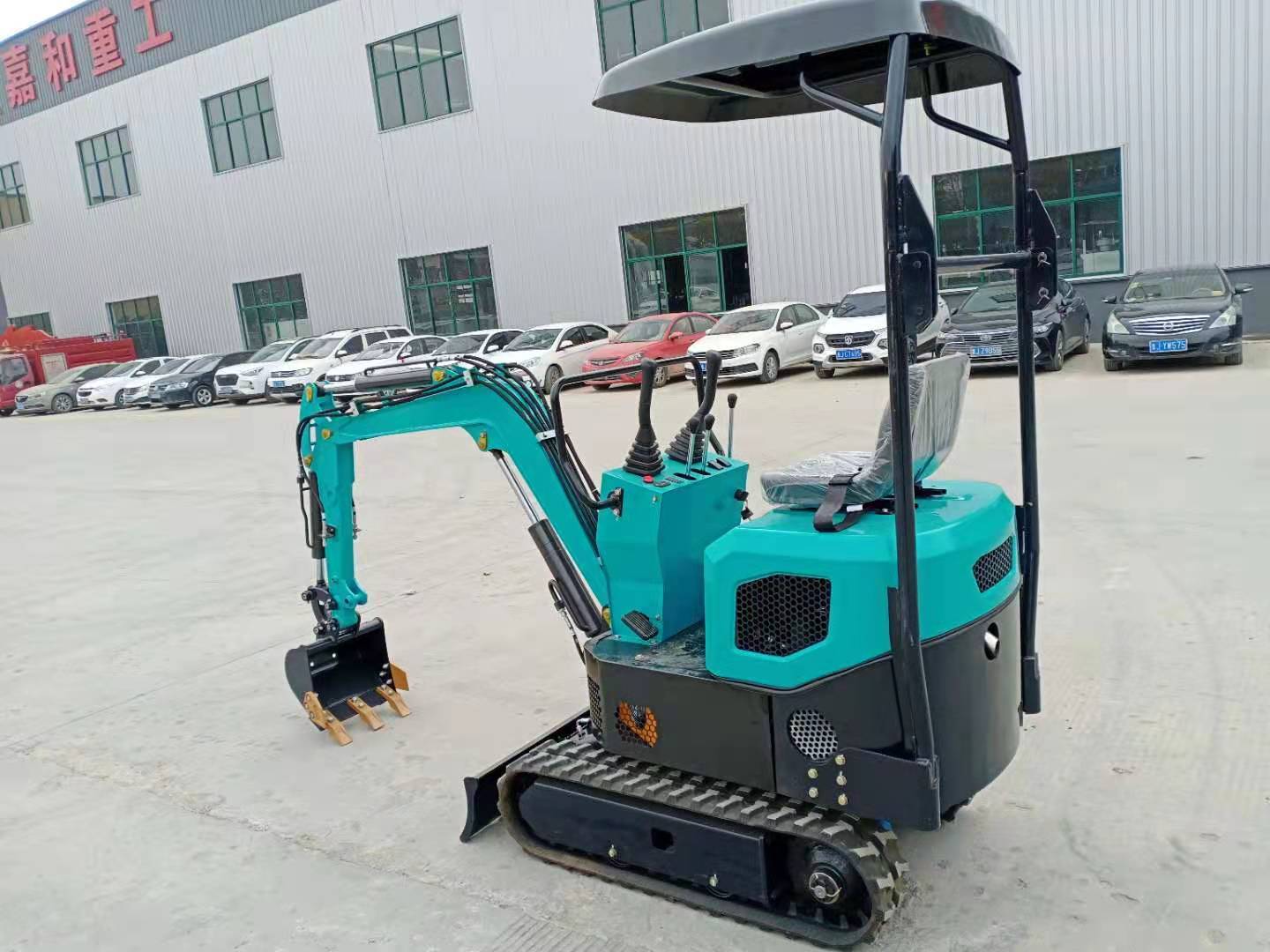

JH10 Mini Hydraulic Crawler Excavator, 1Ton
Kubota Z482 engine Main Machinery
Optional swing arm
Optional telescopic caterpillar track belt
Optional high and low speed
Technical Specification
|
Engine |
Travel System |
|||||||||
|
Model |
KUBOTA Z482 |
Travel motors |
BMT-310 |
|||||||
|
Type |
Direct injection, water cooled, natural intake |
Support roller quantities |
2×2 |
|||||||
|
Carrier roller quantities |
0 |
|||||||||
|
No.engine cylinder |
2 |
Travel speed |
2(km/h) |
|||||||
|
Bore and stroke |
|
Drawbar pulling force |
8.3KN |
|||||||
|
Displacement |
|
Gradeability |
58%(300) |
|||||||
|
Power output |
8.2kw/3000rpm |
Rubber track width |
180mm |
|||||||
|
Max. torque |
|
Rubber track Thickness |
40mm |
|||||||
|
Hydraulic System |
||||||||||
|
Pump |
CBT-F306R6H1R |
|||||||||
|
Type |
Gear pump |
|||||||||
|
Max. discharge flow |
18 (L/min) |
|||||||||
|
Main control valves |
DL80 |
|||||||||
|
Oil cooler |
Air cooled type |
|||||||||
|
Swing System |
Refilling Capacity & lubrication |
|||||||||
|
Swing motor |
BMR200 |
Fuel tank |
7L |
|||||||
|
Swing motor type |
Gerotor motor |
Engine oil |
1.2L |
|||||||
|
Swing speed |
13 r/min |
Hydraulic oil tank |
14.5L Oil Tank Level |
|||||||
|
|
|
21.5L Hydraulic System |
||||||||
|
Bucket |
||||||||||
|
Bucket capacity |
0.023m3 |
|||||||||
|
Bucket width |
400 mm |
|||||||||
|
Working ranges |
|
|||||||||
|
Boom length |
1500m |
|||||||||
|
A |
Max. digging height |
2600mm |
||||||||
|
B |
Max. dumping height |
1830mm |
||||||||
|
C |
Max. digging depth |
1715mm |
||||||||
|
D |
Max. vertical digging depth |
1590mm |
||||||||
|
E |
Max. digging radius |
3065mm |
||||||||
|
F |
Max. digging radius at ground level |
2960mm |
||||||||
|
G |
Min swing radius of work equipment |
1480mm |
||||||||
|
H |
Swing radius at tail |
800mm |
||||||||
|
Digging Force |
||||||||||
|
Arm length |
820mm |
|||||||||
|
A |
Bucket digging force |
7.2 KN |
||||||||
|
B |
Arm digging force |
4.6 KN |
||||||||
|
Overall Dimensions |
||||||||||
|
|
||||||||||
|
A |
Overall length |
2840mm |
I |
Track grounding length |
900mm |
|||||
|
B |
Ground contact length(Transportation) |
2611mm |
J |
Track length |
1233mm |
|||||
|
C |
Overall height(to top of boom) |
1130mm |
K |
Track gauge |
660mm |
|||||
|
D |
Overall width |
880mm |
L |
Track width |
840mm |
|||||
|
E |
Overall height(to top of cab) |
2220mm |
M |
Track Shoe width |
180mm |
|||||
|
F |
Counterweight ground clearance |
385mm |
O |
Counterweight height |
1025mm |
|||||
|
G |
Min. Ground clearance |
132mm |
|
|
|
|||||
|
Operating Weight and Ground Pressure and system pressure |
||||||||||
|
Operating weight includes basic machine |
||||||||||
|
Operating weight |
1150kg |
|||||||||
|
Ground pressure |
20 KPa |
|||||||||
|
Hydraulic system pressure |
16Mpa |
|||||||||
>> CONDITIONS:
Generally, 20 days after receiving deposit/confirmation; Specific dates shall be confirmed
when order.
Tools box, operator’s manual and a list of spare parts.
Generally, 6 months or 1000hours since first receiving the goods,whichever first.
